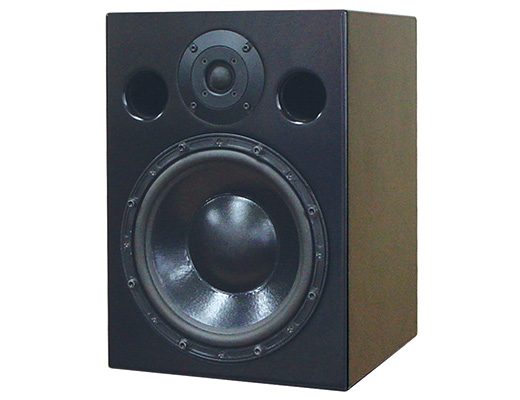

NESmini
Near-field monitor system usable as console-top monitors
This 2-way speaker includes a 10-inch woofer and a 1-inch soft-dome tweeter. With accurate sound image reproduction and natural sound quality, the NESmini is ideal for near-field monitoring. Ideal for constructing small surround monitoring environments when used with the optional speaker stands.
NESmini SPEC <SPEAKER>
| Performance | |
|---|---|
| Frequency response | 70Hz-18kHz ±3dB |
| Crossover frequency | 2kHz (12dB/oct) |
| Nominal impedance | 8Ω |
| f0 | 60Hz |
| Sensitivity | 87dB-SPL (1W 1m) |
| Dimensions | |
| 280(W)×390(H)×280(D)mm | |
| Net weight | 19kg |
| Enclosure material | Melafitt(R) |
| Finish | Urethane painting |
| Input terminals | 2 binding posts "+" "GND"Performance |
