NES450D

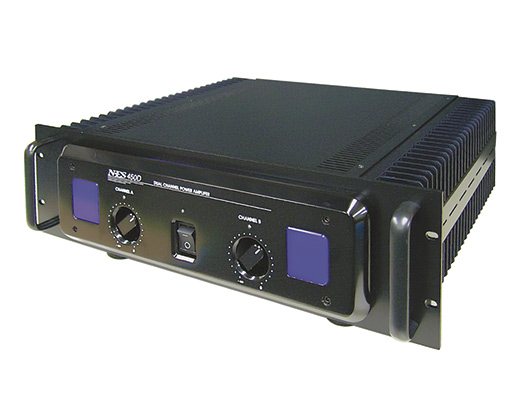

NES450D high-quality stereo amplifier with built-in Over Quality module
NES450 is utilizing the proven Over Quality Series discrete amplifier in the input stage and dividing stage, and is capable of 400 W in MONO mode. In addition to stereo specifications, also offers bi-amp specifications for use as a driver for large speakers with a marginable low-power range and a mid- to high-power range of 150 W. This model incorporates a fan-less design in order to ensure maximum quietness.
NES450D SPEC <Power Amplifier>
| Performance | |
|---|---|
| Power output | Continuous 150W into 8Ω 180W into 4Ω 400W into 8Ω (BTL) |
| Frequency response | 10Hz~30kHz, +0/-0.2dB (1W, 8Ω) 10Hz~100kHz, ±1.5dB (1W, 8Ω) |
| Voltage gain | 30dB (1kHz, 8Ω) |
| Distortion | 0.08% THD, 20Hz~20kHz (190W, 8Ω) |
| Signal/noise | 105dB, IHF-A (Ref. 150W, 8Ω) |
| Damping factor | 200 20Hz~30kHz (RL = 8Ω) |
| Features | |
| Input sensitivity | +4dBu for 150W into 8Ω |
| Input impedance | 10kΩ Balanced |
| Input terminals | XLR3-31F, 2HOT |
| Output terminals | 2 binding posts "+" "GND" |
| Earth terminal | 1 binding post "⊥" |
| Other Technical data | |
| Power requirements | mains voltage AC100 |
| frequency | 50/60Hz |
| consumption | 400W Maximum 100W Minimum(Idling) |
| power muting time | 2sec. |
| Dimensions | |
| Front Panel | 483(W)×132(H)mm (EIA 3U size) |
| Chassis total | 357(D)mm |
| Net Weight | 20.0kg |
