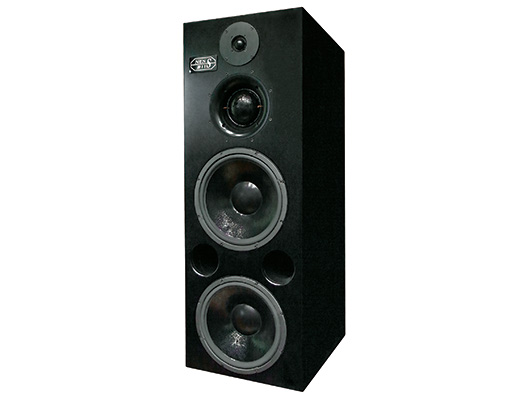

NES211S
Flagship 3-way double-woofer model, selected as the monitors in NHK's high-quality studio
The NES211S is a 1.5-inch soft-dome tweeter with a custom-order 100 mm high-power soft-dome squawker, excellent transient characteristics, and a 3-way configuration with two high-power 12-inch woofers included. Recommended for top-level performance in large monitoring environments including recording studios and TV stations.
NES211S SPEC <SPEAKER>
| Performance | |
|---|---|
| Frequency response | 50Hz-18kHz ±3dB |
| Crossover frequency | 350Hz,3.5kHz (12dB/oct) |
| Nominal impedance | 4Ω |
| f0 | 40Hz |
| Sensitivity | 91dB-SPL (1W 1m) |
| Dimensions | |
| 600(W)×850(H)×500(D)mm(Type V) | |
| 850(W)×600(H)×500(D)mm(Type H) | |
| Net weight | 110kg |
| Enclosure material | Melafitt(R) |
| Finish | Urethane painting |
| Input terminals | 2 binding posts "+" "GND"Performance |
