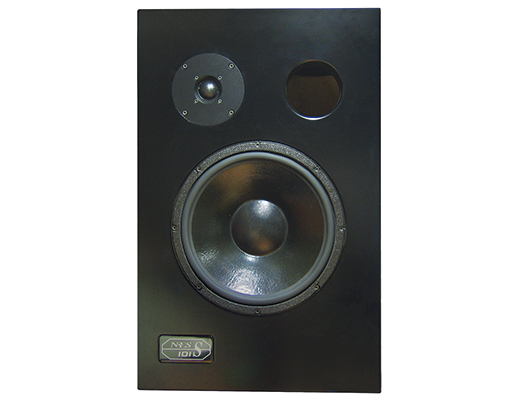

NES101S
2-way speaker system packed with NES Series quality
Including the same 2-way, 12-inch woofer and 1.5 inch soft-dome tweeter as the 211S and 111S, the compact and high-quality 101S series can be been adopted as main monitors or as rear channels in surround monitoring systems.
NES101S SPEC <SPEAKER>
| Performance | |
|---|---|
| Frequency response | 50Hz-18kHz ±3dB |
| Crossover frequency | 2kHz (12dB/oct) |
| Nominal impedance | 8Ω |
| f0 | 40Hz |
| Sensitivity | 88dB-SPL (1W 1m) |
| Dimensions | |
| 450(W)×700(H)×320(D)mm(type V) | |
| 700(W)×450(H)×320(D)mm(type H) | |
| Net weight | 45kg |
| Enclosure material | Melafitt(R) |
| Finish | Urethane painting |
| Input terminals | 2 binding posts "+" "GND"Performance |
