NES100/200LFE
Sub-woofer system for LFE with all the characteristics of NES speakers

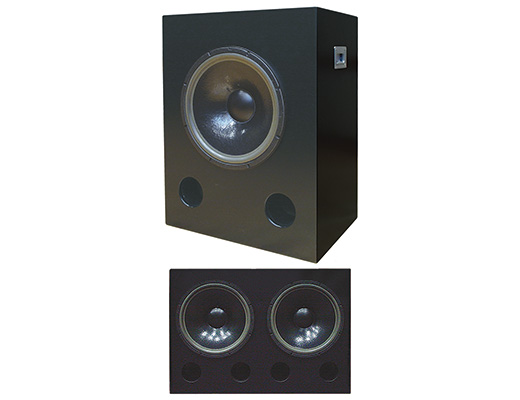

Including a 15-inch subwoofer, the NES100/200LFE is an LFE subwoofer system capable of withstanding ultra-low frequency reproduction thanks to a strong, laminated enclosure made with composite materials. The speaker comes in single-woofer or double-woofer models in order to suit a wide range of needs, from small-scale environments to large-scale setups.
NES100/200LFE <SPEAKER>
| Performance | |
|---|---|
| Frequency response | 50Hz-150Hz±3dB |
| Nominal impedance | 8Ω/4Ω |
| f0 | 40Hz |
| Sensitivity | 91dB-SPL (1W 1m) |
| Dimensions | |
| 580(W)×750(H)×400(D)mm (100) | |
| 900(W)×650(H)×600(D)mm (200) | |
| Net weight | 48kg(100) / 81kg(200) |
| Enclosure material | plywood and Fiber Reinforced Cement Sidings |
| Finish | Urethane painting |
| Input terminals | 2binding posts "+" "GND"Performance |
